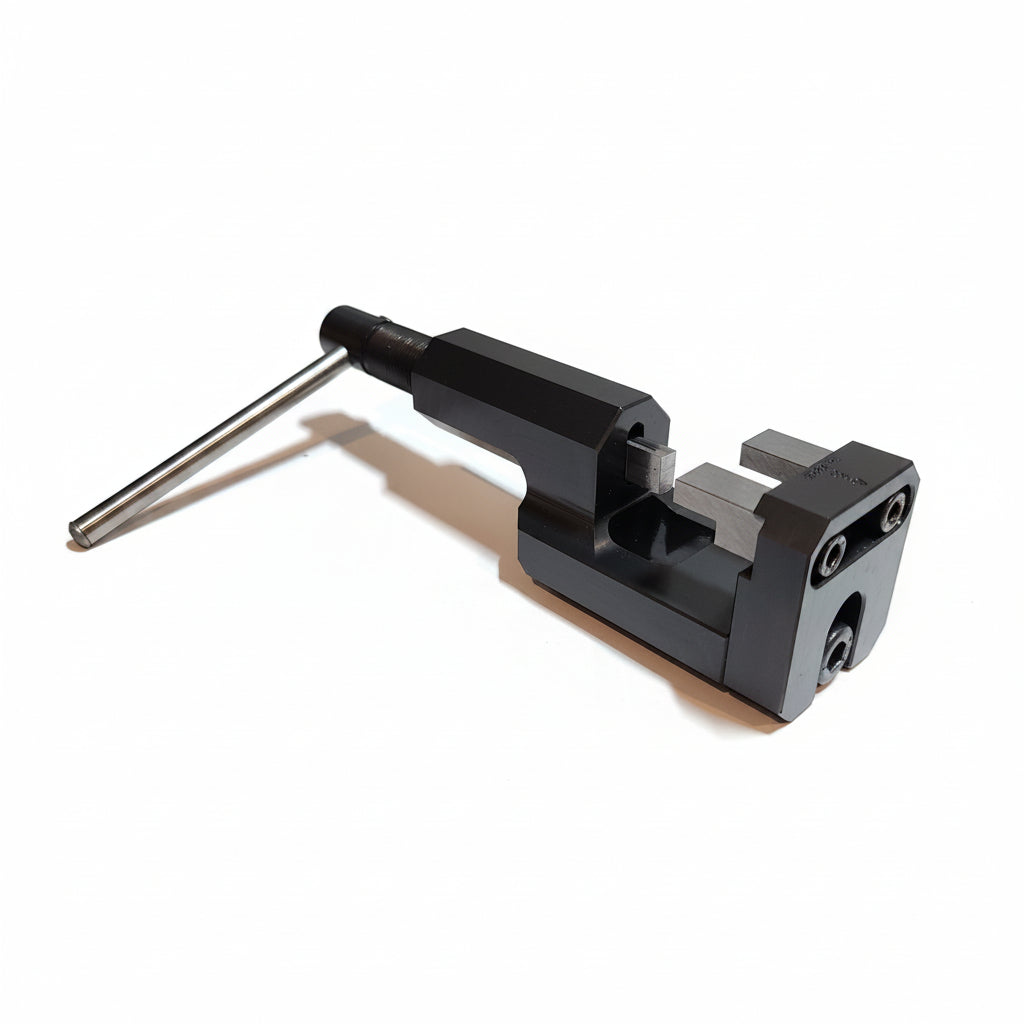

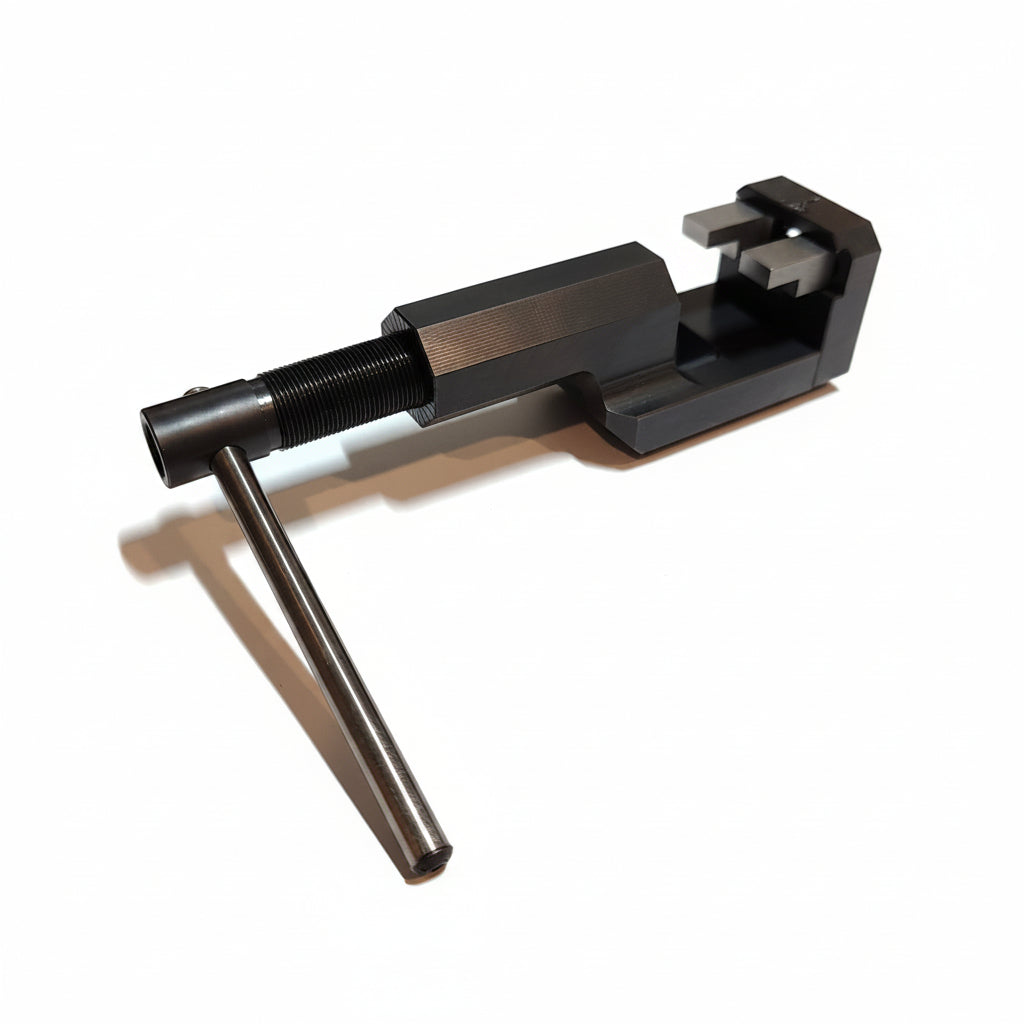

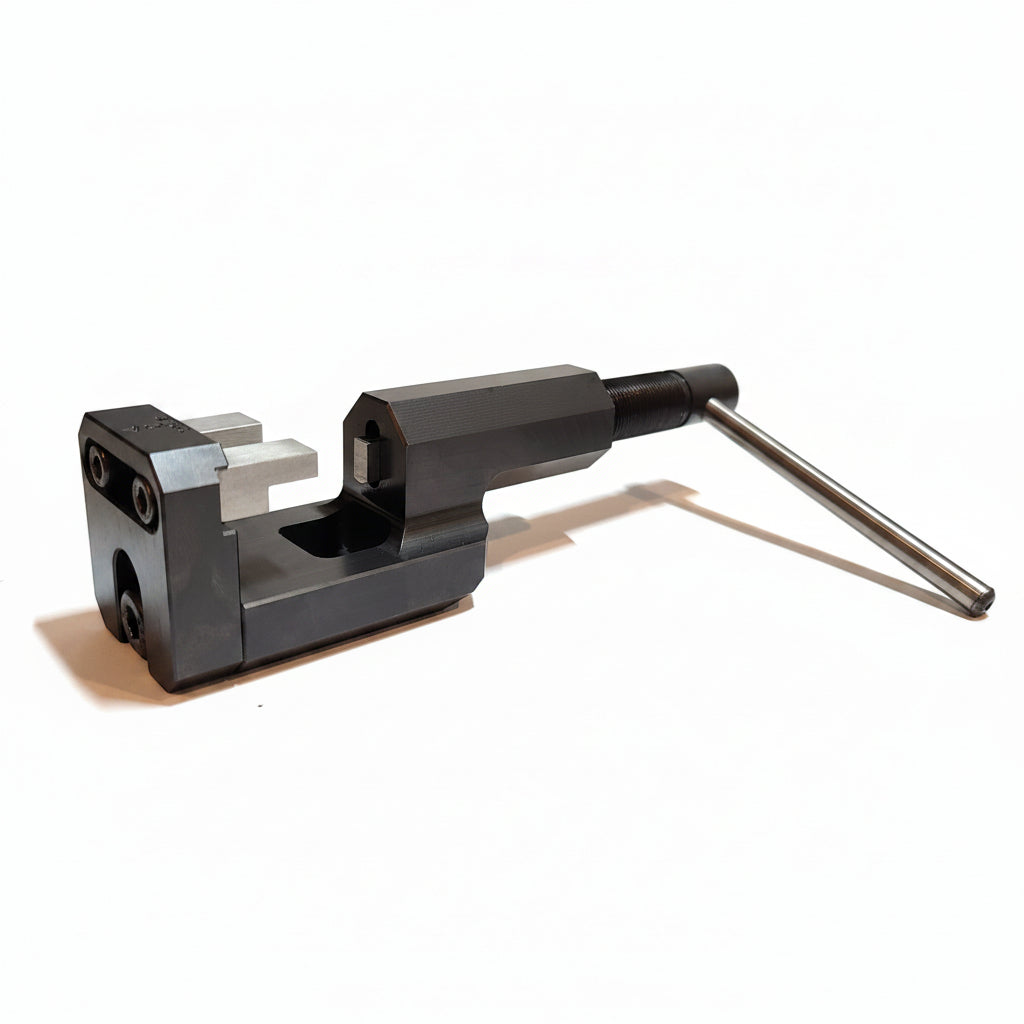

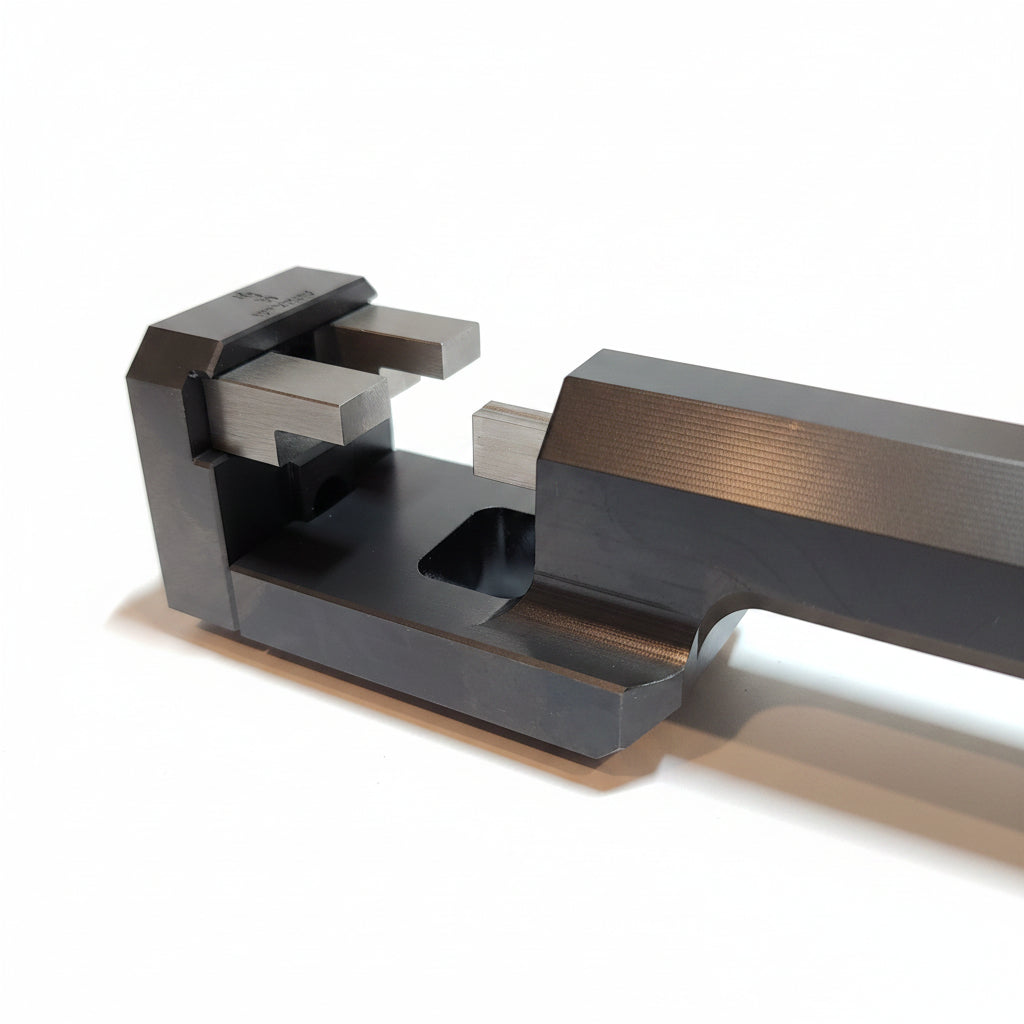

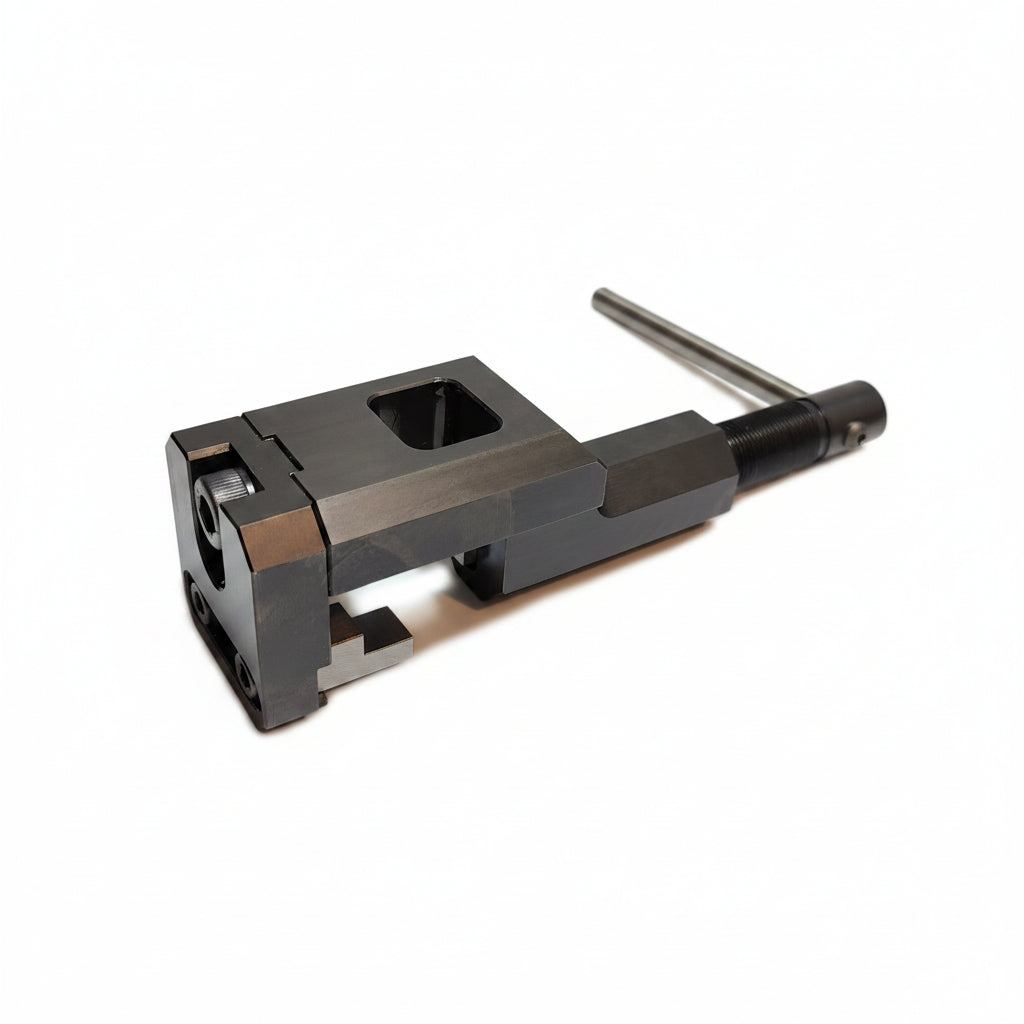

M.O.A. Rifle Sight Adjuster

Take the guesswork out of sighting in your rifle sights! No punches, dinged metal work or stressed ramp screws. Fully adjustable to suit a variety of dovetail widths and heights.

Machined from solid toughened 4140 steel and black nitrided for years of use, very heavy duty. Will remove and adjust a wide variety of dovetail sights that are mounted on a ramp or barrel band. The M16x1mm fine spindle thread gives fine adjustment and power to move even the toughest sights.  Ultra-thin blades will also be available for short ramps or thin bands.

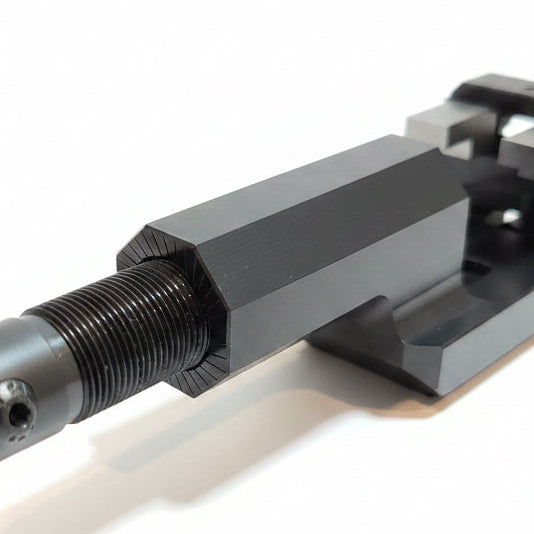

By lining up the tee handle with the graduations on the leadscrew boss, approximately 1/4 moa of adjustment per segment can be achieved with a 400mm sight radius.

Will work on most rifles with ramps or bands such as BSA's, Ruger M77, Ruger 77/357 or 44 with the front barrel band, Bruno/CZ, Marlin 336/1895/1894, Winchester Model 94, Older Tikka and Sako, Mauser, Parker Hale, heavy safari rifles etc.

Measures 140mm-170mm L x 44mm H x 40mm W.

Weighs 0.7kg.
